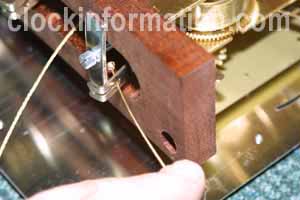

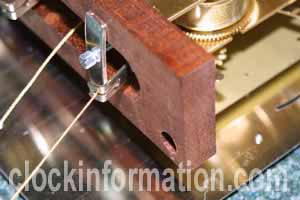

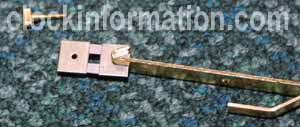

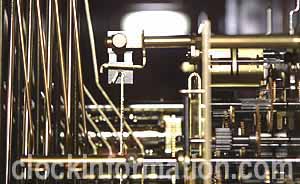

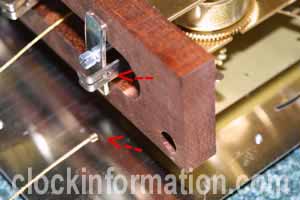

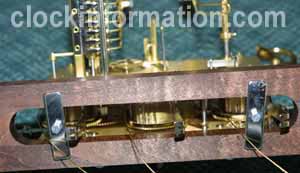

Removing the mechanism ( 13 ) It is not uncommon for the cables to come loose from the mechanism once the weights are removed. That is not a problem. You will see that there is a keyhole shaped slot for the cable knob to go through. ( 14 ) When you are ready to reinstall the weights, you simply slide the knob on the end of the cable through the large part of the slot, then just draw the cable back into position. ( 15 ) It is very important that BEFORE you reconnect the weight to the cable wheel, you make sure that the cable is actually seated down in its place, and not just resting on the edge. The weights could fall through the bottom of your clock if the cables are not properly locked or seated in the bracket. ( 16 ) It is best to remove the suspension spring before you start working on your clock. The spring is easy to twist, or even break. If you get a twist or bend in the spring it will not work. As a rule there are two different holes in the shaft that holds the screw for the suspension spring. Most often the spring mounts to the rear hole. If it is in the wrong hole, it could cause the pendulum to hit or scrape the weights as they go down when the clock is running. Before you remove the spring, just check to see which hole it is in. ( 17 ) This little spring holds all the weight of the pendulum. When adjusting the regulating nut on the bottom of the pendulum, it is easy to twist the pendulum. When this happens, it can snap, or ruin the spring. Always remove the weights and pendulum before moving your clock, even if you are only moving it a few inches. If the pendulum starts twisting, its weight can cause distortion of the spring. We keep them in stock but your clock will not run while you are waiting for us to get one to you. ( 18 ) The mechanism is held to the seat board with two bolts or screws. To oil the clock it is not necessary to separate the mechanism from this board. It can be an easy way to handle the clock. Basic rules to follow: Never force anything. Never bend a part to make it fit. If it fit before, it will still fit unless you are trying to put it the wrong way. Never cuss at the clock, kick the dog, or yell at your spouse while you are working on your clock, and if you reach a point where you are not sure of what to do next, do nothing and wait for your professional clockmaker. Continued on the next page.
